Product Description

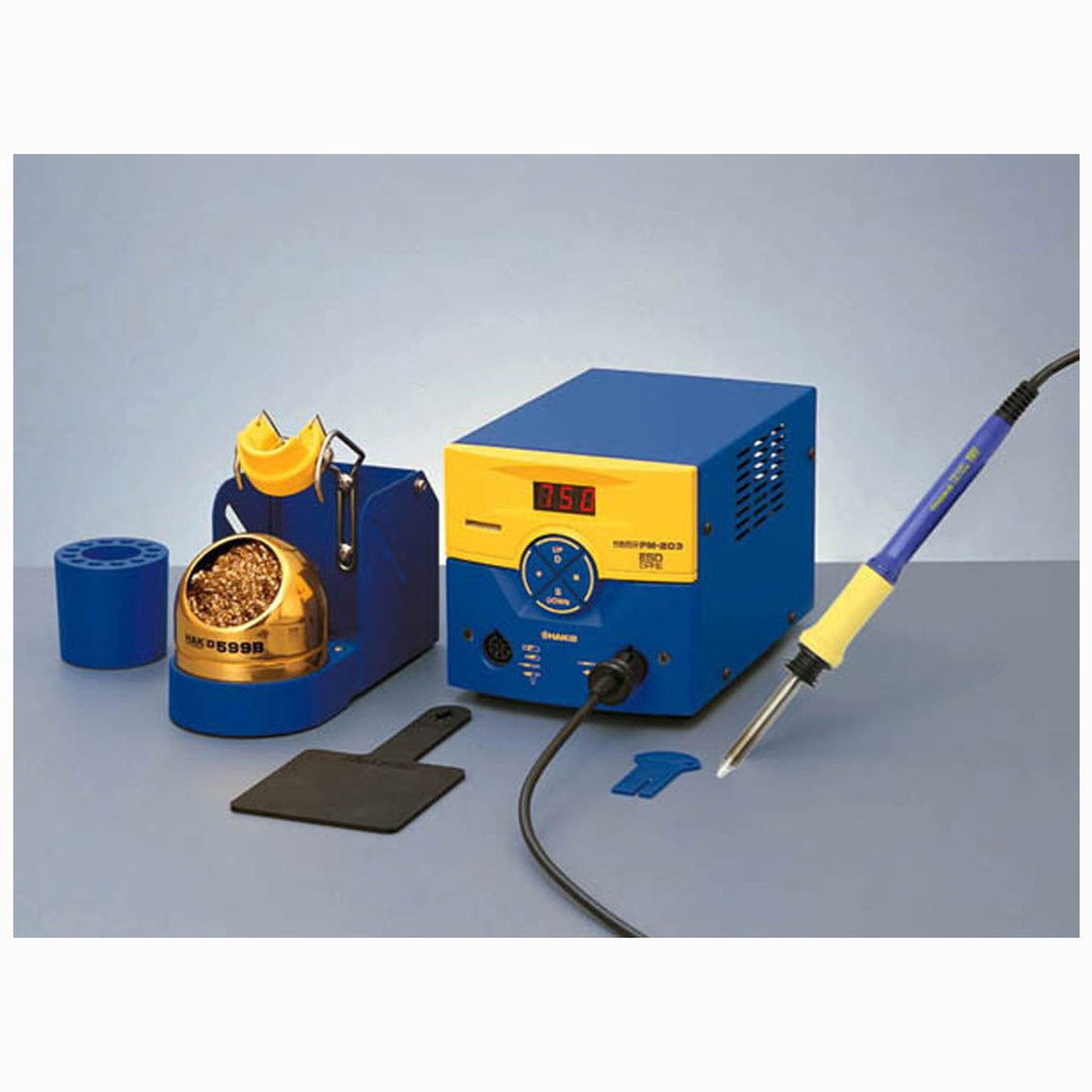

FM-203 DUAL PORT SOLDERING STATION The FM-203 offers two ports for a variety of soldering tools that can be used in a variety of combinations, including soldering irons, SMD hot tweezers andor desoldering tools (see table below). The FM-203 can power the following HAKKO handpieces: FM-2027 soldering iron FM-2032 micro soldering iron FM-2024 desoldering tool FM-2022 parallel remover (hot tweezer) FM-2023 mini hot tweezer FM-2026 nitrogen soldering iron Simultaneous Use Channel D Channel S Yes FM-2027 soldering iron . No - only one handpc will operate - FM-2022 parallel remover hot tweezer FM-2027 soldering iron No - only one handpc will operate - FM-2023 mini hot tweezer FM-2024 desoldering tool Yes FM-2024 desoldering tool FM-2026 N2 soldering iron Yes FM-2026 N2 soldering iron FM-2032 micro soldering iron Yes FM-2032 micro soldering iron Note: The FM-2024 desoldering tool requires the HAKKO FM-2024 desoldering module (PN: FM2024-21 conversion kit.) Note: The FM-2026 handpiece needs nitrogen (N2) generator (HAKKO FX-780), flowmeter (HAKKO FX-701) compressor, regulator, etc. The FM-203 features: process control so you can select any temperature you want without changing the tip - one tip, any temperature temperature range 200 - 450C (400 - 840F) temperature accuracy 15C LED in handpiece tells the operator the iron is hot auto shutoff sleep mode functionality No Calibration Necessary Note: Tips are NOT included. Part Number: C1551 Attention: Station ONLY (handpieces NOT included) Part Number: FM203-01 Attention: The FM-203 ships with one (1) FM2027-03 soldering handpiece. Part Number: FM203-DP Attention: The FM-203 ships with two (2) FM2027-03 soldering handpieces. Part Number: FM203-HD Attention: The FM-203 ships with one (1) FM2030-01 Heavy Duty soldering handpiece. See Specifications for more details. Note: The FM-203 stations with serial numbers before 02203211002129 will require the purchase of an upgrade. Due to the upgrade process requirements, upgrades cannot be performed in the field. Stations must be returned to American Hakko under an CASE for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2030-02 kit and your selection of T22 tips. Specifications FM-203 SOLDERING STATION Model Name FM-203 Part Number FM203-HD Power Consumption 140W 120V Temperature Stability 5C (9F) STATION Output Voltage 24V Outer Dimensions 120(W) x 120(H) x 190(D) mm 4.7 (W) x 4.7 (H) x 7.5 (D) in. Weight 2.7 kg (5.9 lbs.) SOLDERING IRON (FM-2030 Heavy Duty HANDPIECE ONLY) Power Consumption 140W 24V Temperature Range 200 - 500C (400 - 930F) Tip-to-Ground Resistance lt; 2 ohms Tip-to-Ground Potential lt; 2mV Total Length (wo cord) with 2.4D tip 224 mm (8.8 in.) Weight (wo cord) with 2.4D tip 41g (1.4 oz.) Cord 1.3 m (4.3 ft.) Tips T22 Series (not included) CONTENTS Part Number NA FM-203 Soldering Station FM2030-01 FM-2030 Handpiece B2419 Power cord B2972 Control card B2300 Heat resistant pad FH200-01 Iron Holder, Sleep, w599B B3253 Connecting cable B2756 Tip tray NA Instruction manual - FM-203 NA Instruction manual - FM-2030 NA Product Supplement APPROVED
